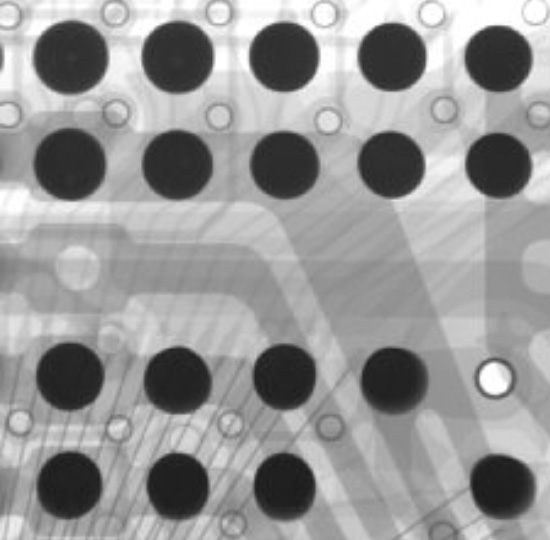

For the evaluation of BGA connection after reflow, inspection with Microfocus X-ray inspection system from angled view is becoming more of a necessity.

Inquiries

Outline

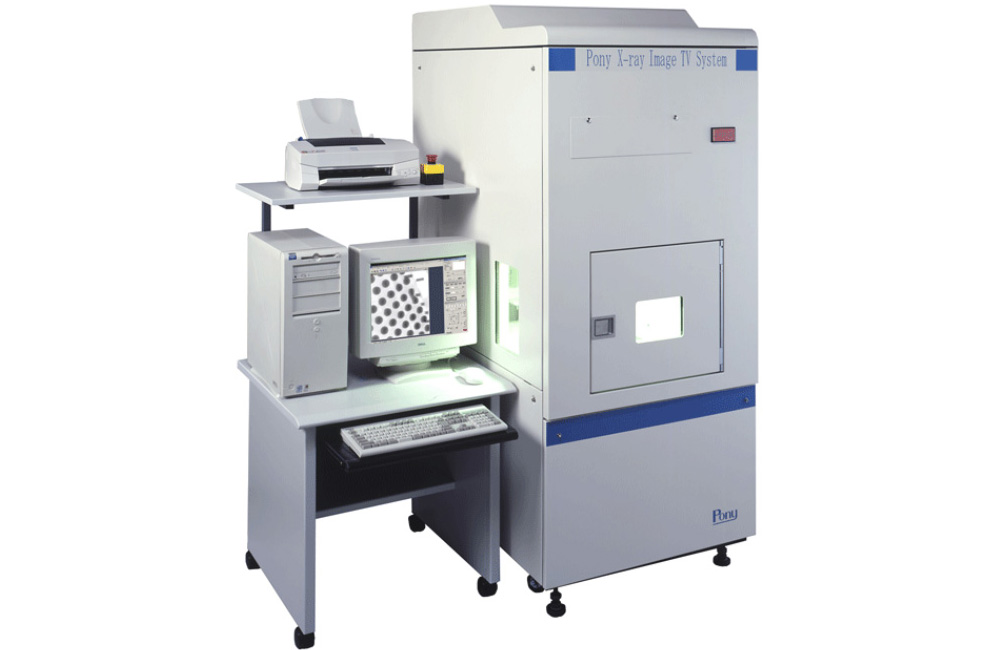

ME4100-VC has one Imaging Intensifier on top as its detector. This system comes equipped with Theta-Axis Turning Device. This helpful device turns 360 degrees in both directions, allowing inspection of a sample from various directions.

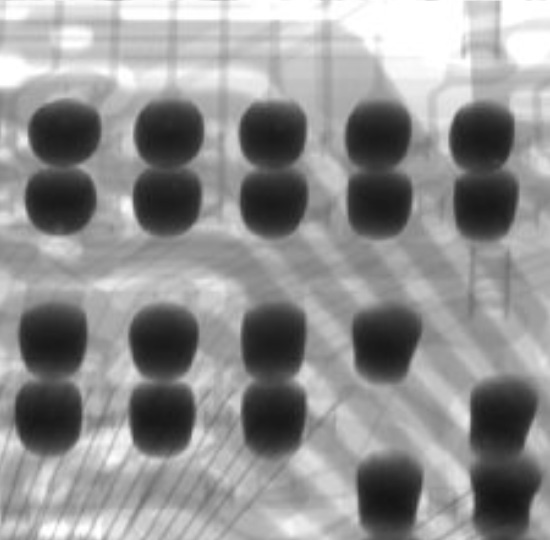

MV3100-VC on the other hand, has two Digital Flat Panel. One for the top view and the other for the angled view. Top and Angle can be switched by a simple click of a mouse button. On top of that, it does not require time consuming view point adjustment, as normal systems with inclination mechanisms do.

Specifications

		ME4100-VC	MV3100-VC
X-ray Generator	Max. Tube Voltage Max. Tube Current	100kV / 0.25mA
	Max. Output	10W
	Warm Up	Automatic
	X-ray Control	PC
X-ray Detectors （Digital Flat Panel）	# of Detectors	1 (Top)	2 (Top & Angle)
	Panel Type	Imaging Intensifier	CMOS DFP
	Effective Area	2-4 in. changeable	52.8 x 52.8mm
	Geometric Magnification	about 84 times
	Total Pixels	about 0.38M Pixels	about 1M Pixels
	Output Resolution	8 bit : 256 grayscale	12 bit (Digital) : 4096 grayscale
PIA-Soft CS	PC / OS	Windows XP
	Display	17 in.	19 in.
	Image Processing	Filtering (Integration, Contrast Enhancement, Edge Enhancement, etc...), Histogram, LUT Operation, (B/W Inverse, Gamma Correction, etc...), Image Rotation, Zoom-In/Out, Duplicate Image, and Insert Text

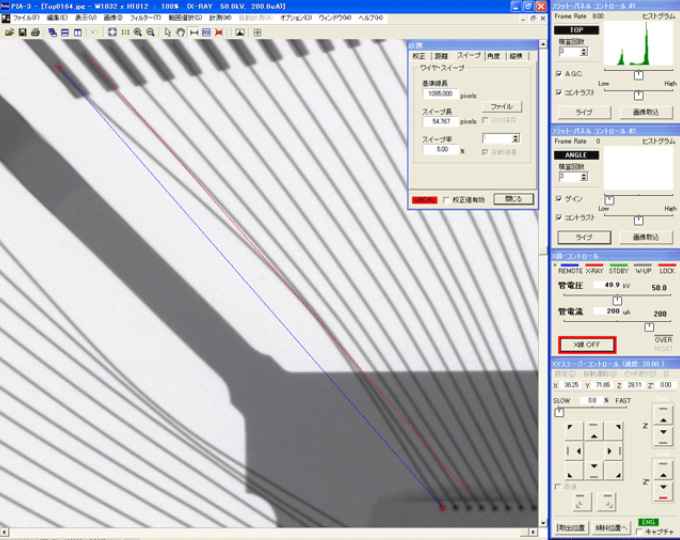

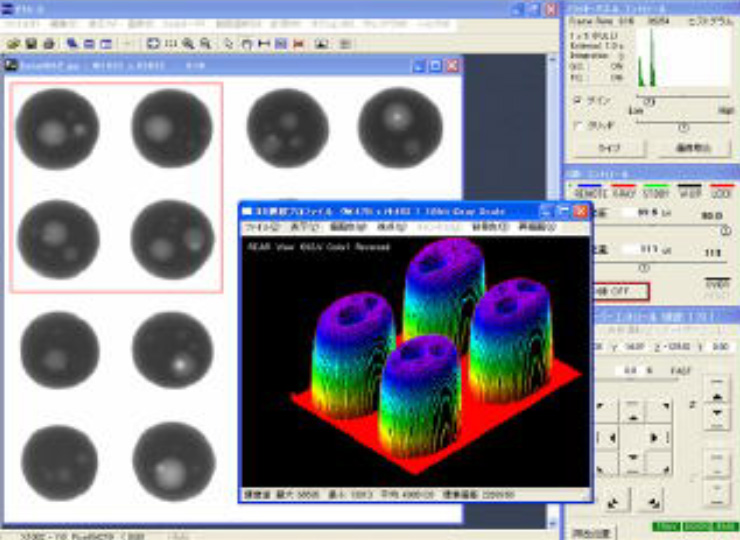

	Image Measurement	Void Measurement, Wire Sweep Rate, Length Meas., Brightness Meas., 3D Luminance Profile
Sample Scanner	Scanner Control	Automatic and Manual Scanning
	X-Y-Z axis Stroke	300 x 300 x 680mm	300 x 230 x 680mm
	Theta-Axis Turning Device	360 degrees in both directions	N/A
Shielding Box	X-ray Leakage	less than 1uSv/h
	Interlock*	Equipped
	Size	W790 x D1045 x H1775mm
	Weight	about 750kg
Power Source		AC50/60Hz 100V 10A

This system is equipped with interlock mechanism, to protect the operator from unintended irradiation.

Specifications above may be changed without prior notice.
When the system is exported to foreign countries, Japanese Government may require exporting license.
System specifications: including configuration, X-ray generator, X-ray detector, and Irradiation Box may be upgraded upon user`s request.
PIA-Soft is a trademark of PONY INDUSTRY CO., LTD. All other products are trademarks and registered trademarks of their respective owners.
